Drainage Gravel & Winter Runoff Management Winnipeg: Keep Your Yard Dry Year-Round

Why Winter Demands Attention to Drainage

Winter in Winnipeg creates unique drainage challenges that many homeowners overlook until spring reveals the damage. Snowmelt, freeze-thaw cycles, and mixed precipitation events test drainage systems in ways that summer rainstorms never do. Understanding how winter conditions stress your yard's drainage capacity helps prevent the spring muddy disasters and structural damage that plague unprepared properties.

Good drainage foundation materials reduce spring mud issues while preventing the surface settling and erosion that require costly repairs. The key lies in understanding which gravel types serve which purposes, and ensuring your property incorporates appropriate materials in proper locations before winter's challenges arrive.

How Gravel Enables Effective Drainage

The Science of Void Space and Water Movement

Gravel's drainage effectiveness stems from the void spaces between individual stones. Unlike dense soil that restricts water movement, properly sized gravel allows rapid vertical and horizontal water flow. Research from the University of Minnesota indicates that clean gravel drainage layers can handle water flow rates 100-1000 times faster than native clay soils, critical performance in Winnipeg's clay-heavy soil conditions.

Particle size determines drainage capacity. Larger stones (3/4 inch) create bigger void spaces, moving water rapidly but potentially allowing soil intrusion. Smaller gravel provides more numerous but smaller voids, slowing water movement while better preventing soil contamination. Professional drainage design matches gravel size to specific application requirements.

Angular vs. rounded particles affects compaction and stability. Crushed limestone's angular edges interlock when compacted, providing structural stability while maintaining drainage capacity. Rounded river rock creates larger void spaces with less compaction potential, ideal for pure drainage applications where structural support isn't required.

Preventing Erosion and Soil Saturation

Strategic gravel placement prevents the erosion that destroys landscaping during heavy runoff events. Manitoba's spring snowmelt can generate runoff volumes exceeding summer's heaviest rainstorms. According to Environment Canada data, spring melt often delivers 60-80mm of water over compressed timeframes, creating erosive flows that wash away topsoil and undermine plantings.

Gravel barriers and swales slow water velocity while facilitating absorption. Rather than concentrating flow that erodes soil and overwhelms drainage infrastructure, properly designed gravel systems spread water across broader areas, reducing velocity while maintaining movement toward appropriate discharge points.

Relationship with Other Drainage Materials

Layered systems combine different materials, achieving both drainage and filtration. Typical installations incorporate:

• Fine sand layer prevents soil migration into gravel while allowing water passage

• Drainage gravel: primary water collection and movement zone

• Geotextile fabric: separates gravel from the surrounding soil, preventing long-term contamination




This layered approach, common in French drains, foundation drainage, and hardscape installations, provides the filtration, preventing system failure while maintaining the drainage capacity that makes gravel-based systems effective.

Common Drainage Gravel Types and Applications

Clear Stone (3/4-inch): The Drainage Workhorse

Clean, uniformly sized limestone represents the standard for serious drainage applications. The 3/4-inch particle size creates an optimal balance between drainage capacity and long-term performance. This material surrounds perforated drainage pipes in French drain systems, underlies patio and walkway installations, and creates dedicated drainage channels managing concentrated water flows.

Applications include:

• French drain envelopes providing 360-degree water collection around perforated pipes

• Foundation drainage systems protecting the basement and crawl space areas

• Dry well installations managing concentrated roof drainage or surface collection

• Hardscape base layers provide both structural support and drainage




Manitoba contractors specify that the majority of residential drainage installations in Manitoba use clear stone or similar washed aggregate as the primary material.

Crushed Limestone and A-Base: Foundation Layer Materials

Crusher run limestone (also called A-base or road base) combines various limestone particle sizes from dust through 3/4 inch. This mixed gradation allows excellent compaction while maintaining reasonable drainage, ideal for base layers requiring both structural stability and water management.

Base layer applications include:

• Driveway and parking area foundations preventing settling and heaving

• Patio and walkway bases providing stable platforms for surface materials

• Grading corrections raising drainage-challenged areas above saturation zones




The fine particles in crusher run fill voids between larger stones, creating a mechanically locked structure that resists the shifting and settling that plague single-sized materials.

When compacted to 95% Standard Proctor Density, crusher run approaches poured

concrete's stability while maintaining superior drainage compared to solid surfaces.

Pea Gravel: Decorative Drainage Solutions

Small, rounded stones (1/4-to-3/8-inch diameter) provide both aesthetic appeal and functional drainage. While offering less drainage capacity than larger clear stone, pea gravel's attractive appearance and comfortable texture suit visible applications where pure engineering performance isn't the sole consideration.

Appropriate uses include:

• Decorative surface drainage swales and dry creek beds

• Pathway surfaces in garden areas require good drainage

• Ground cover around downspouts, managing roof drainage

• Foundation perimeter zones provide both drainage and a finished appearance




Pea gravel costs 20-30% more than clear stone but justifies premium pricing in landscape areas where material visibility demands attractive appearance alongside functional performance. View our selection of drainage materials at Ditchfield Soils for current availability.

Winter Runoff Management Strategies

Preventing Ice Layer Formation

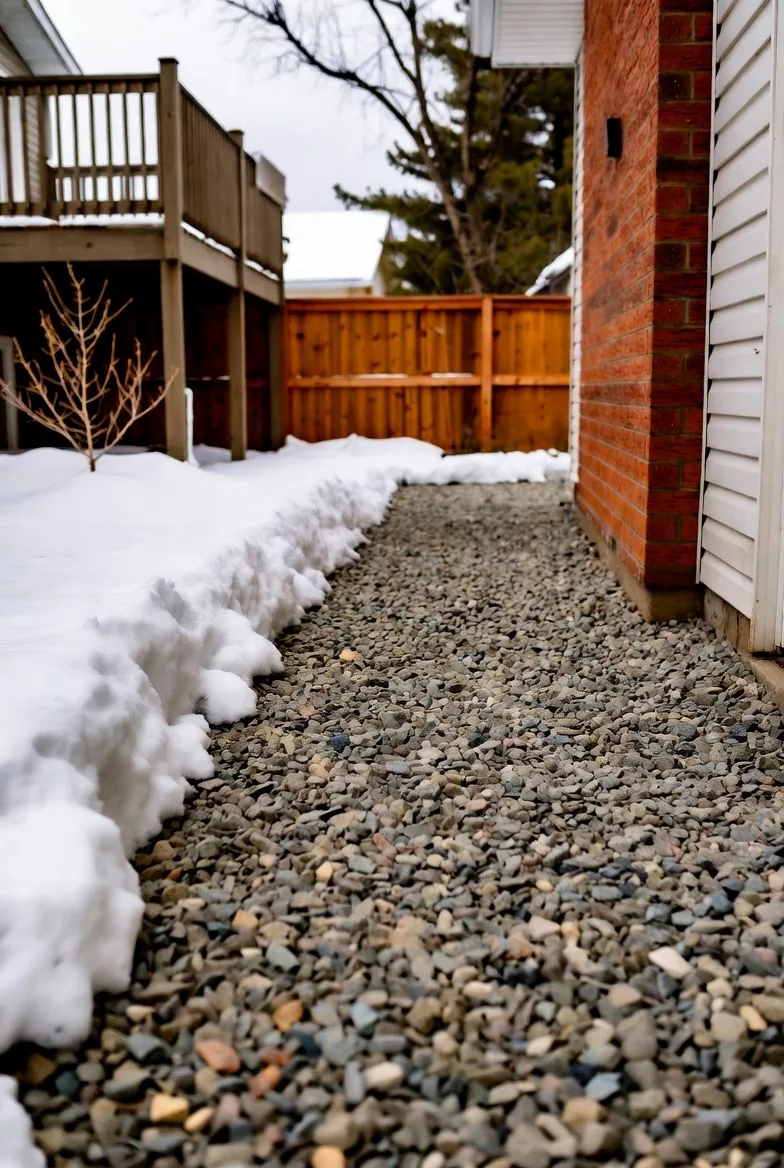

Gravel beds around downspouts prevent the ice sheets from forming when roof drainage floods the surface during freeze-thaw cycles. Rather than pooling and freezing, water drains through gravel into the underlying soil, eliminating the hazardous ice patches that create slip-and-fall dangers.

The City of Winnipeg reports 500+ winter slip-and-fall injuries annually according to municipal records, many occurring on residential properties where poor drainage creates ice accumulation. Strategic gravel placement reduces these hazards while protecting property from liability exposure.

Permeable surface areas utilizing pea gravel or larger stone eliminate the standing water that freezes into problematic ice layers. Consider replacing solid surfaces in low-traffic areas with attractive gravel treatments, improving drainage while reducing ice management demands.

Managing Freeze-Thaw Ground Movement

Deep gravel layers beneath hardscape prevent the frost heave damage that destroys improperly constructed patios, walkways, and driveways. Manitoba's frost penetration reaches 6-8 feet according to National Research Council data, creating tremendous uplift forces when water-saturated soil freezes.

Minimum 6-inch drainage gravel layers prevent water accumulation in base materials, eliminating the moisture that causes damaging frost heave. This preventive approach costs far less than repeatedly repairing frost-damaged installations, while providing superior performance through decades of freeze-thaw cycling.

Maintaining Grading and Runoff Pathways

Fall drainage inspection identifies problem areas before winter conditions magnify them. Check that:

• Downspout extensions discharge away from foundations into gravel beds or drainage areas

• Surface grading maintains 2% minimum slope directing water away from structures

• Drainage swales and channels remain clear of leaf debris and soil accumulation

• Gravel drainage areas haven't settled or become contaminated with soil




Simple maintenance addressing these factors prevents winter drainage failures that create expensive spring damage requiring professional correction. Browse gravel products suitable for drainage applications to replenish or upgrade drainage materials before winter conditions arrive.

Planning Ahead: Spring Project Preparation

Material Procurement Timing

Early planning ensures material availability and competitive pricing. Spring construction season creates demand surges that strain supplier inventories and delivery schedules. Property owners ordering drainage gravel and base materials during the winter months secure availability while often accessing favourable off-season pricing.

Quantity estimation for typical residential drainage projects:

• French drain systems: 1-2 tons of clear stone per 30-40 linear feet

• Patio/walkway bases: 1.5-2 tons per 100 square feet (6-inch depth)

• Downspout drainage areas: 0.5-1 ton per downspout location

• Driveway bases: 8-12 tons per parking space (assumes 8-inch depth)




Our team at Ditchfield Soils provides accurate quantity calculations based on your specific project dimensions and requirements, preventing the delays and expense of mid-project material shortages.

Coordination with Professional Installation

Material delivery timing affects project efficiency and costs. Coordinating delivery with installer schedules prevents extended storage requirements while ensuring materials arrive exactly when needed. Our flexible delivery services accommodate both immediate needs and scheduled project timelines, supporting efficient construction regardless of project scale.

Quality verification before installation protects project success. Proper drainage gravel should be clean (minimal dust and sediment), properly sized (consistent with specifications), and free from contamination. These quality factors affect both immediate installation success and long-term drainage system performance.

The Hidden Hero of Winter Yard Care

Correct drainage gravel and properly designed drainage systems represent the "invisible infrastructure" protecting your landscape investment through Winnipeg's challenging winters. While less visible than beautiful plantings or impressive hardscapes, quality drainage materials determine whether those visible elements thrive or deteriorate over time.

Understanding gravel types, appropriate applications, and winter-specific drainage considerations helps property owners make informed decisions about materials and systems protecting their properties. Whether addressing existing drainage deficiencies or planning new landscape installations, proper material selection ensures reliable performance through Manitoba's demanding climate conditions.

Ready to improve your property's drainage before winter tests your current systems? Contact Ditchfield Soils for expert guidance on drainage gravel selection, accurate quantity calculations, and reliable delivery throughout Winnipeg and surrounding areas. Our knowledgeable team helps ensure you receive appropriate materials in proper quantities, supporting successful drainage solutions that protect your property investment for years ahead.

Don't wait for spring flooding to reveal drainage deficiencies. Plan ahead with quality materials and professional guidance, ensuring your yard remains dry and functional regardless of what Manitoba's weather delivers.
